Level Water Sensor/ Liquid Level Sensor/ Float Switch for Water Tank/ Water Level Sensor for Tank

Specification:

Model: FDS061-WS03

Product Name: level water sensor/liquid level sensor

Voltage: DC5V- 24V  5mA

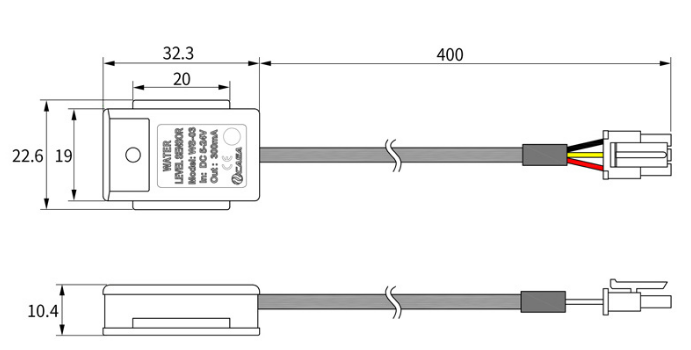

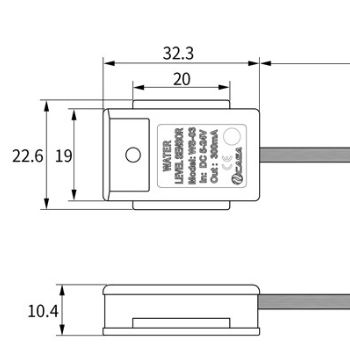

Size: 32.3 x 22.6 x 10.4mm

Material: plastic

Color: black

Sensor Detection range: 10MM

Product characteristic:

① sensor is applied to be installed outside of the container without direct contact the liquid. It is not eroded by superacid and alkali liquid and not affectted by the scale.

② Liquid level status is displayed by LED.

③ High stabilization & sensitivity, good anti-jamming and no interference by outside electromagnetism. It fits for the using under complex environment.

④ Mightiness compatibility, it can penetrate various of non-metal material containers, such as plastic, glass, ceramic and other container. length can reach 10mm and it can detect Liquid, powder & grain object. Small size that is paste and use. Fit to use to detect the liqudi level Of the pipe.

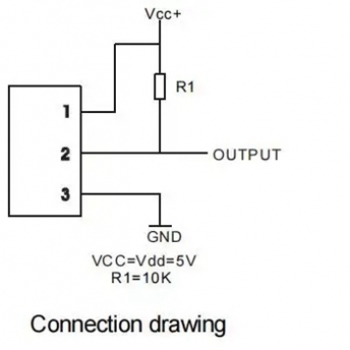

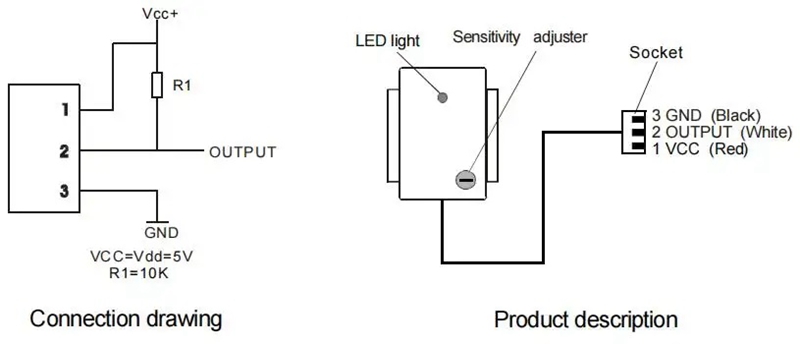

⑤ Output with open collector which is applied to every kind of control circuit.

Application: nonmetal container such as plastic, glass, ceramic also in the pipe.

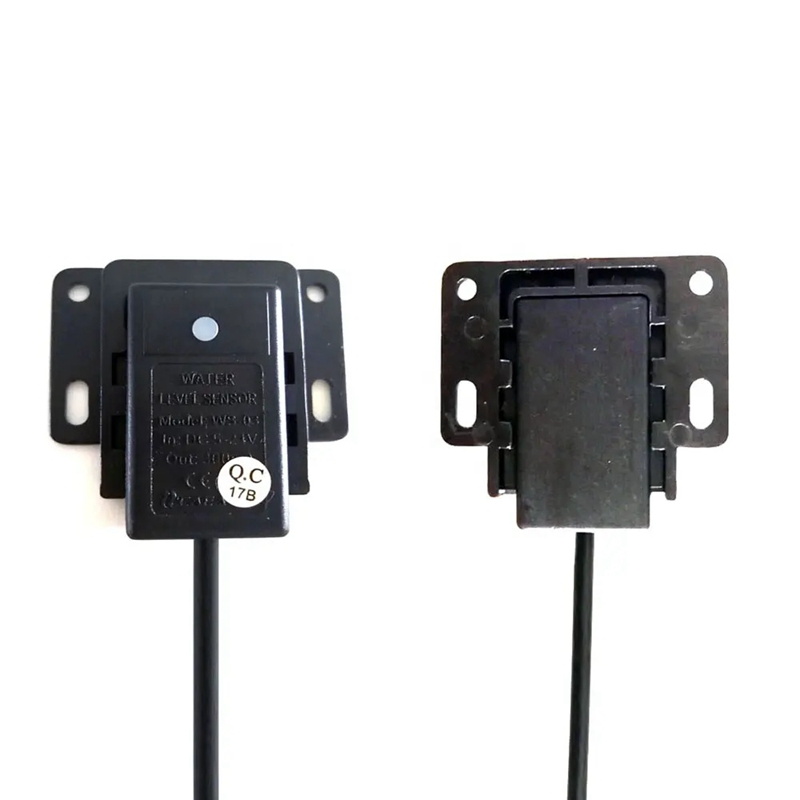

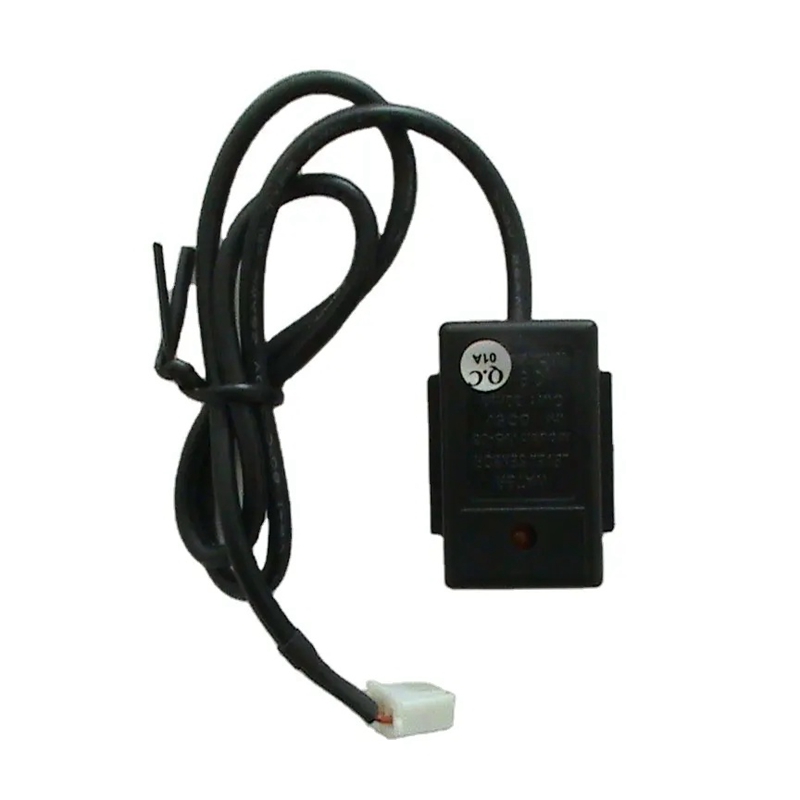

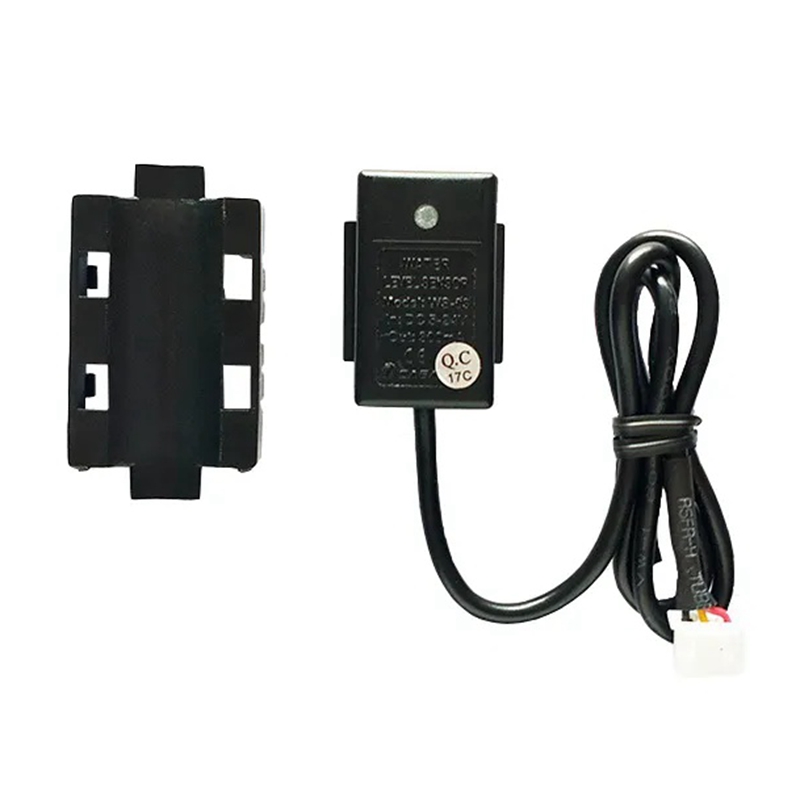

Product Pictures:

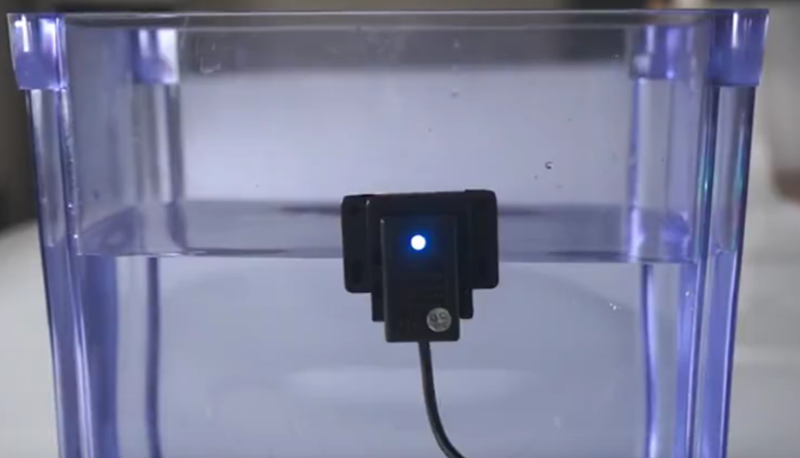

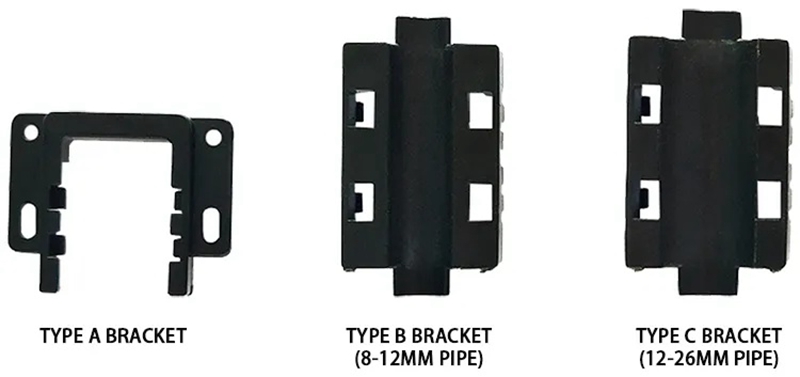

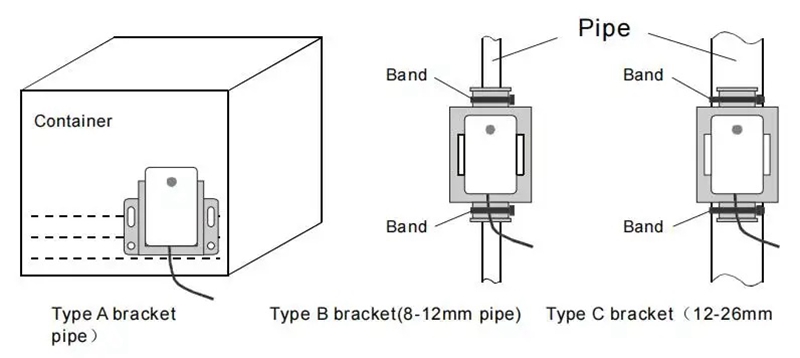

Installation:

Company profile

We manufacture bespoke led sensor lighting & proximity sensor, motion sensor light switch for hotel, hospitality contract furniture projects such as cabinet, closet, wardrobe, hotel bed headboard, bed base, led mirror.....We cooperate with furniture manufacturers, lighting fixture distributors and retailers, interior designers and decorators, as well as construction developers and contractors.

We have CE (EMC LVD),ROHS,FCC and UL certificates

Why choose us?

1. Direct factory production  -    Cost efficient and low MOQ

2.Technical support starting from product develop

3. Experienced at customize production and OEM/ODM

4. 10 + years foreign trade experience in lighting industry

5. Qulified quality control system

6. Fast sampling(2-7 days) and delivery (<30 days)

FAQ

1.Do you provide samples?

- Yes, sure. Samples can be sent in 2-7 working days.

2.Can you make changes at customize requirements?

- Yes. OEM ODM is welcome

3.What’s MOQ of Infrared light sensor?

- 100pcs at inventory

Trade terms:              EXW,FOB,CIF

Payment terms:         T/T, PayPal, Western Union

Payment condition:   30-50% deposit in advance,50-70% balance after delivery at B/L copy

Delivery Time:           2-7 working days for sample order, 10-25 working days for mass production

Delivery:                    by sea, by air or by express

Packing:                    Carton, pallet for large size
