How Many Steps for Install Cabinet Light?

0

Published by admin March 26,2024

The skill level of this project is low and the only necessary tools needed are a knife to cut plastic tubing and a tape measure. A meter stick or yard will work in a pinch too.

Materials:

  • 1 Meter of RGB strip LEDS.
  • Light socket adapter. In this case to adapt a range light to have an electrical socket.
  • Clear tubing capable of going over the curtain rod with a little extra space. 3/4" or 1" (20mm to 25mm)

  • 12 V RGB LED controller. Be sure to buy one with a socket instead of red/black loose wires.
  • 12V Power supply.
  • Adjustable curtain rod. Available at hardware stores.

The second image above is animated to show what is possible with the different colors and because colors stand out better on a white wall. It is easy to choose white light but difficult to demonstrate.

Step 1: Measure Twice and Cut Tubing

Measure the span under the cabinet where this will be installed. Now measure that distance on a piece of clear tubing and cut it to length. If you have a segment of the tubing you could simply hold it up to the cabinet and cut it where appropriate.

In my case the distance was 34.5" (875mm) and I cut it with a band saw. Rolling the tubing under a sharp knife would have probably been safer.

Cutting the tubing a bit short is all right and cutting crooked is fine because this will be out of sight. Don't sweat this step.

under cabinet light

Step 2: Add the Lights and Curtain Rod to the Tube

Push the bare end of the LED strip through the tubing until only the connector dongle is sticking out. No need to remove the adhesive backing.

Extend the curtain rod to its maximum length by twisting the smaller rod.

Take the rubber end off the small end of curtain rod.

Push the curtain rod through the tubing alongside the LED strip. Be careful not to force it because this may damage the LED strip.

The rubber cap should be put back on the curtain rod when it has been pushed through.

Note: This will be similar to rope light except the LEDs will face one direction and send all their light toward your kitchen surface whereas rope lights send light in all directions. In addition the internal curtain rod provides rigidity and a means of support so even if someone peaks at this light it isn't unattractive.

Step 3: Electrical Stuff and Finishing

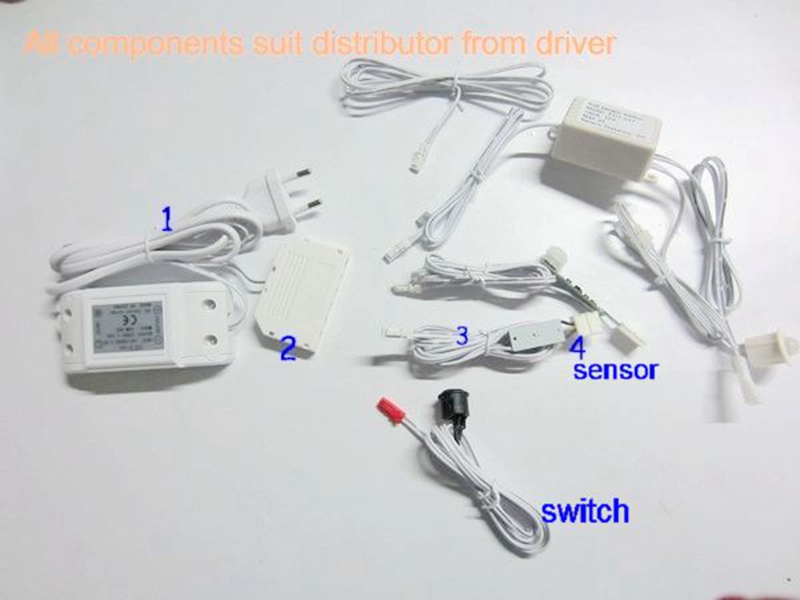

power supply

The power supply and controller should fit together easily, they both use a very common 2.1mm connector. The controller will have an indicator on one of the pins and the LED strip will have a similar indicator so when you plug them together nothing will be reversed.

My light was installed next to my range hood so I decided to take power from the light socket there. It was easy enough to buy a light socket adapter which provided an electrical receptacle. If you use a kitchen receptacle there is no need to buy the light socket adapter.

Make any final adjustments to the curtain rod length and wedge it between the cabinet underside. Push it out of the way so it isn't visible.

If necessary, twist the tubing gently so all the LEDs point down.

Bundle up the 12V cord with a rubber band or something non-metallic.

You're set! Use the buttons on the controller to find a color you like.



< >
