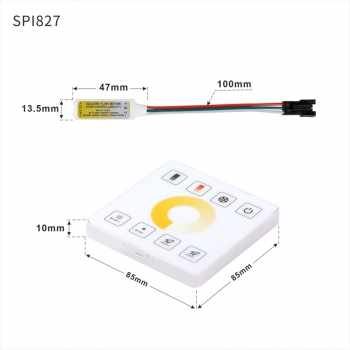

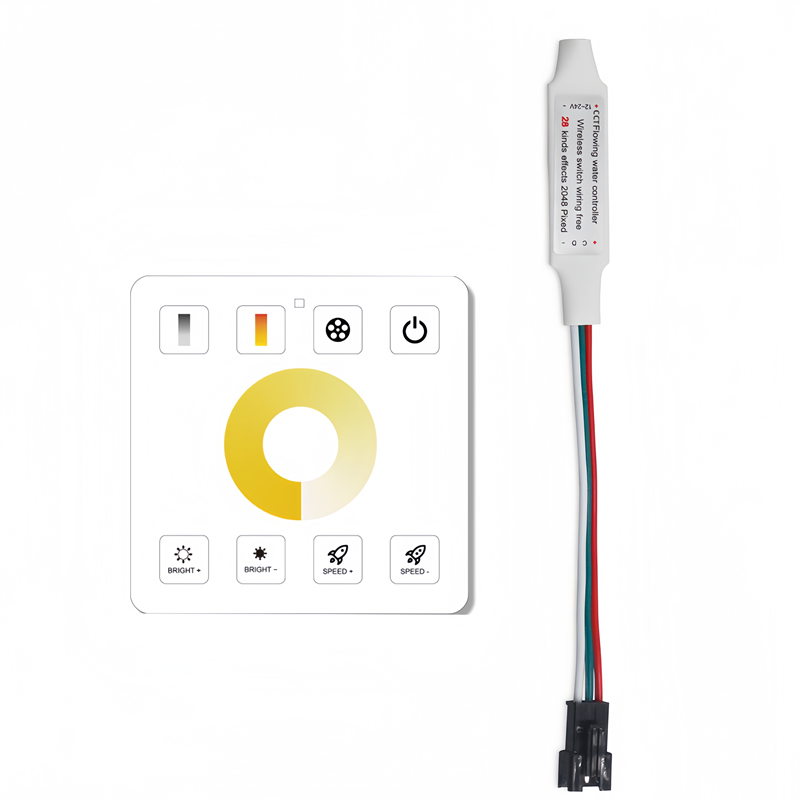

RF Touch Panel CCT Flowing Controller

Home Automation 5v-24v RF Switch Touch Panel Wall Switch CCT Flowing Wireless Addressable Running Water Flowing LED Controller

Basic Parameters:

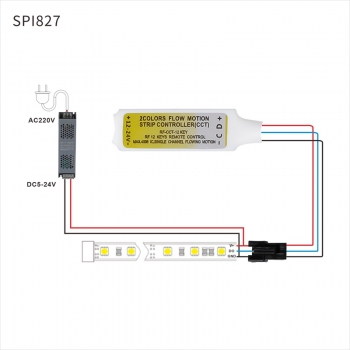

1. Working Voltage: DC12-24V
2. Number of control points: maximum can control 2048 pixels
3. Remote control distance:15 meters
4. Battery model: CR2025(product included 1 pc)
5. Effect mode:20 modes

IC Set: Press IC Set button to enter the IC set mode. Press "  " to increase IC, Press " " to decrease IC. press and hold to fast adjust. After the adjustment, press the " power on/ off button" to save and exit.The default is 80 pixels, and the maximum can adjust to 2048 pixels.
Dimming circle: stepless dimming
Speed: Speed+ and speed-, 10 steps. press and hold to fast adjust

Mode List
1. Turn on the lights and the water is always on, turn off  the lights and light back flow & turn off  the lights
2. Turn on the lights and the water is always on, turn off the lights and light flow forth & turn off the
lights
3. The water flowing from the two ends to the middle is always on, and the lights are turned off and the water flows back to the two ends.
4. The water flowing from the middle to the two ends is always on, and the two ends of the light are turned off to return to the middle
5. Turn on the light and the flowing water is always on (with breathing gradient), turn off the
back flow and turn off the light
6. Circulation mode: turn on the lights and 5 IC meteors trail, turn off the lights and turn off the lights
7. Circulation mode: turn on the lights and flow water, 7 ICs trailing water at both ends, turn off
 the lights and return to turn off  the lights
8. Cycle mode: turn on the lights and run the water,2 ICs chase the horse, turn off the lights and turn off the lights
9. Cycle mode: turn on the lights and run water with 5 ICs chasing the horse, turn off the lights
and return to turn off the lights
10. Cycle mode: turn on the lights, 1 IC marquee +4 IC meteors trailing, turn off the lights and
return to turn off the lights
11. Cycle mode: turn on the lights, 9 IC meteors are piled up, and the water trailing effect
12. Cycle mode: turn on the light and fade once, 9 IC meteors are piled up, and the water trailing
effect
13. Circulation mode: turn on the light and flow water from both ends to the middle
14. Circulation mode: water flowing from the middle of the light to both ends
15. Circulation mode: turn on the light and flow water from both ends to the middle, and turn
off  the light from the middle to both ends
16. Circulation mode: turn on the light, the water flows to the two ends, and the two ends go to the middle to turn off the light
17. Circulation mode; turn on the light and flow forward
18. Circulation mode: turn on the lights and return the flowing water
19. Circulation mode: turn on the light to flow the water forward, and flow the water back
20. Circulation mode: turn on the light and flow forward, turn off the lights in the downstream, flow back and turn off the lights

Code matching and code clearing
Code matching: Long press the  "  "   button within 5 seconds after the controller is powered on,
 the light flashes 3 times slowly.
Code clearing: Long press the   " "  button within 5 seconds after the controller is powered on,
 the light flashes 3 times quickly.
