Intelligent DC12-24V Pixel Led Stair Controller Wireless APP Control Staircase Light Strip PIR Infrared Motion Sensor Controller Led Stair Controller

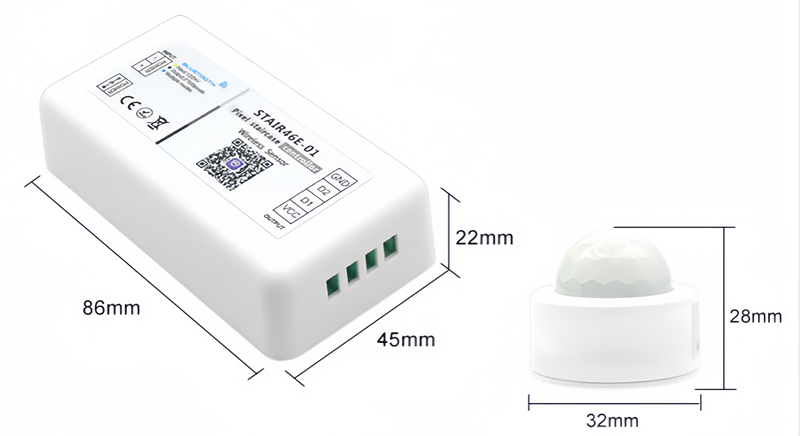

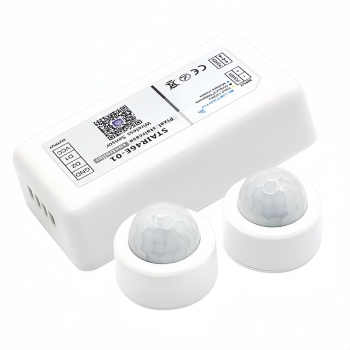

Stair 46E-01 SPI Monochrome Bluetooth Stair Controller

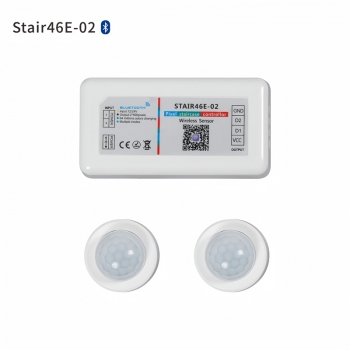

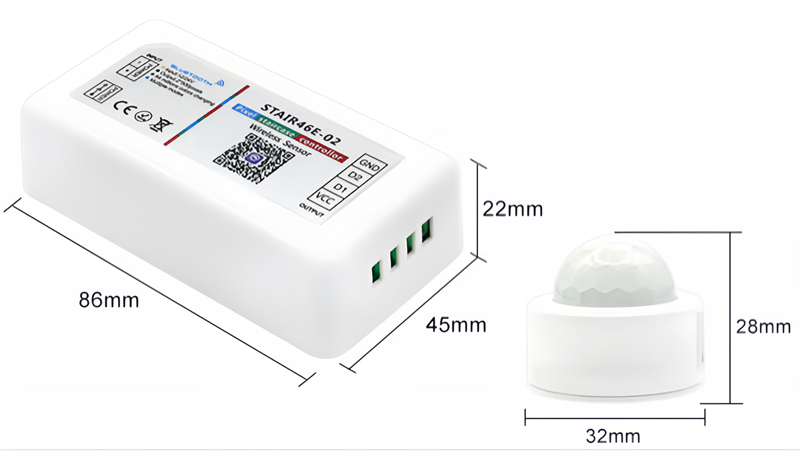

Stair 46E-02 SPI fantasy Bluetooth Satir Controller (Universal Version)

Product Functions

1. Smartphone App Control: Bluetooth smart control for easy operation.
2. Serial wiring: Single- cable connection with no extra wiring costs.
3. Multiple Modes &640,000 Colors: Choose from a wide range of lighting effects and colors.
4. Timing Function: supports scheduled on/off settings for a more rhythmic lifestyle.

Product Features

Input Voltage:        DC12/24V
Output:                2×500PIXEL
Dimming Levels:        100 levels
Control Methods:        Bluetooth/ RF Remote
Dimming Method:    SPI
Working Temperature:   -20ºC to +55ºC
Package Dimensions:   L115*W1102*H48mm
Gross Weight:        200g


Product Selling Point
Wireless motion sensor-stick anywhere,use instantly. A must-have for smart homes.


Product Features
SPI Monochrome
Staircase Features:
1. Gradual step-on lighting(selectable number of steps)
2. All lights always on
3. Color-following mode (selectable number of steps)
4. Gradual step-off lighting(selectable number of steps)
5. Single-color flowing effect
6. Cross-flow effect
7. Left-flowing effect
8. Right-flowing effect
9. Wave-flow effect
10. Cross-chase effect (Selectable number of marquee LEDs)
11. Left-chase effect (Selectable number of marquee LEDs)
12. Right-chase effect (Selectable number of marquee LEDs)
Additional Feature:
· Customizable device on/ off times forflexible scheduling

L-BLSTAIRCONTR2 SPI Fantasy
Staircase Features:
1. Gradual step-on lighting(selectable number of steps)
2. All lights always on
3. Color-following effect(selectable number of steps)
4. Gradual step-off lighting(selectable number of steps)
5. Single-color flowing effect
6. Base-color flowing effect
7. Cross-flow effect
8. Left-flowing effect
9. Right-flowing effect
10. Rainbow-flowing effect
11. Cross-chase effect (Selectable number of marquee LEDs)
12. Left-chase effect (Selectable number of marquee LEDs)
13. Right-chase effect(Selectable number of marquee LEDs)
(Each effect supports up to 640,000color options.)
Additional Feature:
· Customizable device on/ off times for flexible scheduling.
