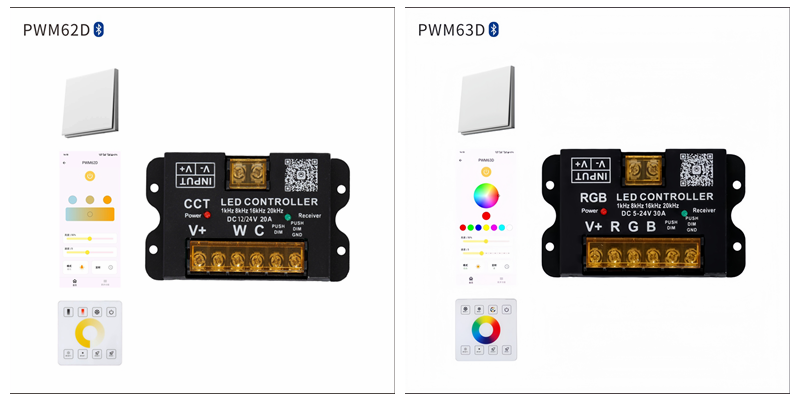

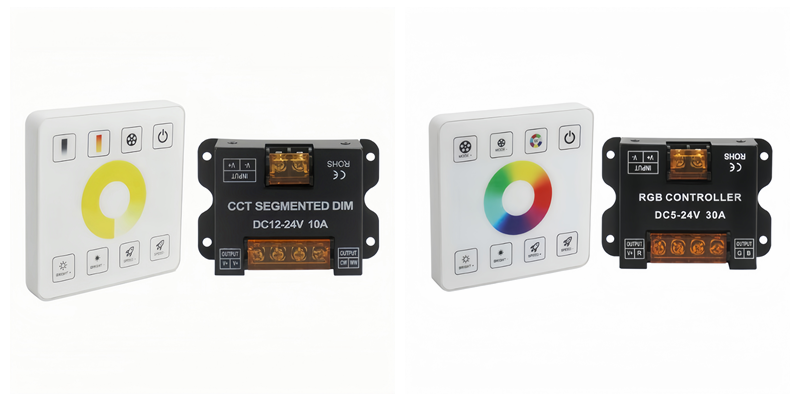

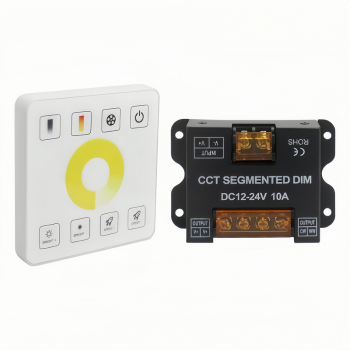

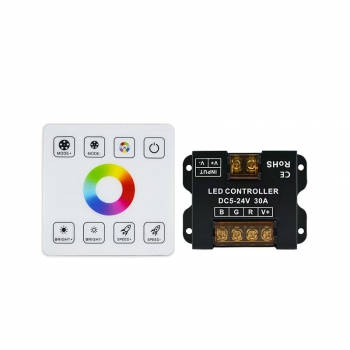

Touch Panel CCT + RGB Bluetooth Controller

DC12-24V RF Bluetooth Switch CCT RGB LED Light Controller Glass Touch Panel Wall Switch Brightness Dimmer

Product Features:

Product Selling Point:
3-in-1 control, high-frequency flicker-free, and scheduled trun off

Product Functions:
1. Mobile App Control with Bluetooth Smart Technology
2. Supports Two Types of Push Switch Control
3. Compatible with Four Frequency Settings - Flicker-Free for
Photography
4. Short-Circuit Protection

Notes:
Select a power supply that matches the voltage of the lighting fixture. Strictly prohibit live operation.

Mobile APP:
1. Ultra Life APP Support: Compatible with iOS and Android systems.
2. System Requirements:
iOS devices require iOS 12 or later.
Android devices require Android 4.4 or later.
3. Download Options:
Search for' Ultra Life' in the APP Store or GooglePlay.
Scan the QR code to download and install.





Product Functions:
CCT
Push Switch Functions:
1. Single Click: Turn the light ON/OFF
2. Double Click: Toggle between 100% and 10% brightness
3. Long Press(>1s) when OFF: Adjust color temperature-cycles from warm to cool white, then back
4. Long Press(>1s) when ON: Adjust brightness
Bluetooth/ Remote Control Modes:
1. Warm White                             6. Alternating Breathing (Warm, Cool, Neutral)
2. Cool White 7. Warm Flashing Mode
3. Neutral White 8. Neutral Flashing Mode
4. Warm Breathing Mode                   9. Cool Flashing Mode
5. Cool Breathing Mode                    10. Alternating Flashing (Cool, Neutral, Warm)
Supports selection of either 3 or 5 mode switching upon power reset.
All modes feature smooth fade-in and fade-out transitions.

RGB
Push Switch Functions:
1. Single Click: Turn ON/OFF
2. Double Click: Switch to white light; double click again to return to the previous mode
3. Long Press(>1s) when OFF:
· In dynamic mode: cycle through speed levels
· In white light mode: adjust brightness (from bright to dim, then reverses)
4. Long Press(>1s) when ON:
· In color mode: pause the dynamic effect
· In white light mode: adjust brightness(from bright to dim, then reverses)
Bluetooth/ Remote Control Modes:

1. White Light
2. White Light Breathing
3. RGB Fade
4. RGB Breadthing
5. 7-Color Jumping
6. RGB Jumping
7. Red Jumping
8. Greem Jumping
9. Blue Jumping

10.White Jumping
11.Yellow Jumping
12.Purple Jumping
13.Pink Jumping
14.Cyan Jumping
15.Red Strobe
16.Green Strobe
17.Blue Strobe
18.White Strobe
19.Yellow Strobe
